Roigtronic Robinetterie Professionnelle
(Disponible
jusqu'à
épuisement
des
stocks)
(Disponible
jusqu'à
épuisement
des
stocks)
(Disponible
jusqu'à
épuisement
des
stocks)

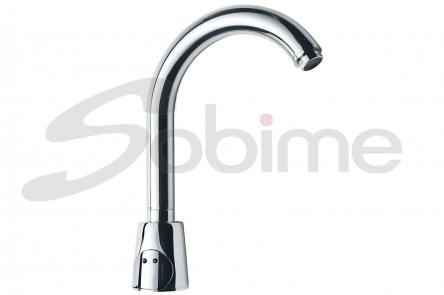

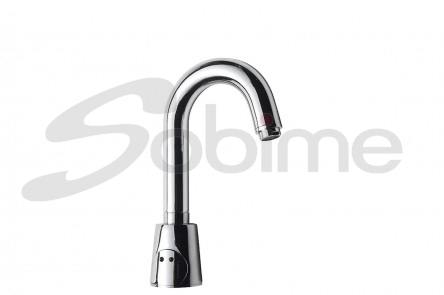

BEC
HAUT
BEC
BAS
LEDS
SYTÈME
DE
SENSORS
LEDS
SYTÈME
DE
SENSORS
LEDS
SYTÈME
DE
SENSORS
LEDS
SYTÈME
DE
SENSORS
LEDS
SYTÈME
DE
SENSORS
LEDS
SYTÈME
DE
SENSORS
DE
CONTRÔLE
DE
CONTRÔLE
DE
CONTRÔLE
DE
TEMPÉRATURE
(SOL,
OMEGA,
GAMMA)
DESIGN CHARACTERISTIC
Watertight design: Power box resistant to high pressure water cleaning.
Antivandal design: High security sensory system.
Design by blocks: For easy maintenance and replacement
Optional: Automatic drainage system.
Interchangeable handle and cap.
GENERAL TECHNICAL INFORMATION:
Temperature: max. 75ºC .
Pressure: from 0,2 to 12 bars
Working voltage: 12 V.D.C.
Length of infrared ray: 12 cm. Activated by infrared sensor.
Timing: Instant opening. Closes in 3 seconds.
Filtration system: 1 Water filter admission + electrically operated valve filter.
Standard finish: in chrome 12 microns
Leak-tightness: I.P. 65 in box and connectors.
Anchor hole: 33,5 mm minimum.
Flow: Max. 16 l/min.
Batteries: 4 AA alcaline batteries of 1,5 V (6 V.D.C.)
Manufacturered according to E.C. regulations

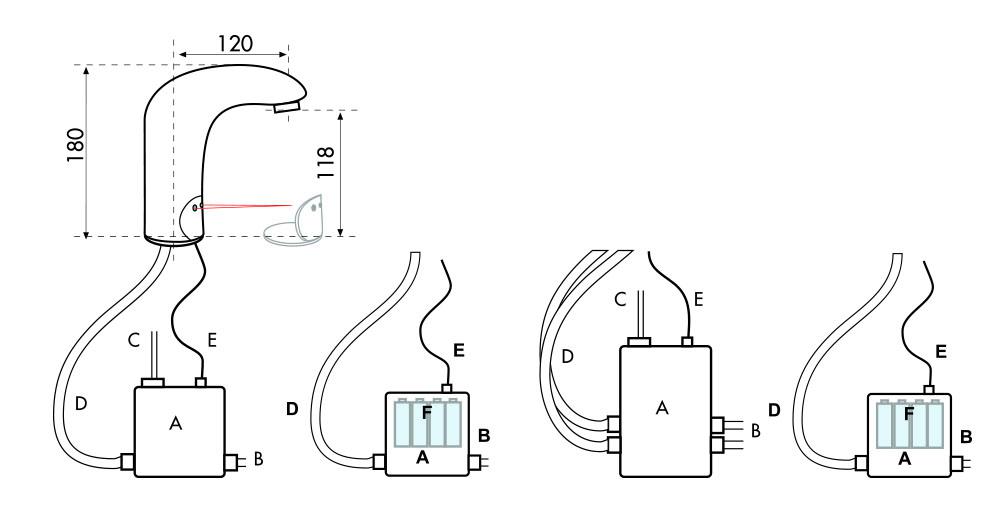

A - Control box
B - Water inlet flexible hoses
C - Intake of current
D - Flexible hoses for tap connection
E - Cable control connector
F - Pack alkaline batteries
